As-built drawings consist of completed building information model and the hardcopy drawing which incorporates the modifications during the construction phase, changes made as per the field request, shop drawings and contractor designs required during the construction.

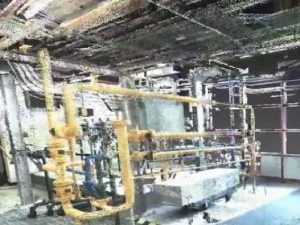

Developing 3D CAD models using 3D laser scanning technology, provides users with detailed point clouds which enable 3D modelling for diverse tasks including plant layout and enhanced data presentation with augmented reality
The documentation of as-built drawings generally takes place during or post-installation. In the midst of construction process, workers may run into several unforeseen circumstances which require installing few items contrarily from the originally intended plan. These issues are generally tackled at the site itself and the new changes are marked in the plan or point cloud is forwarded to us, after installation.
